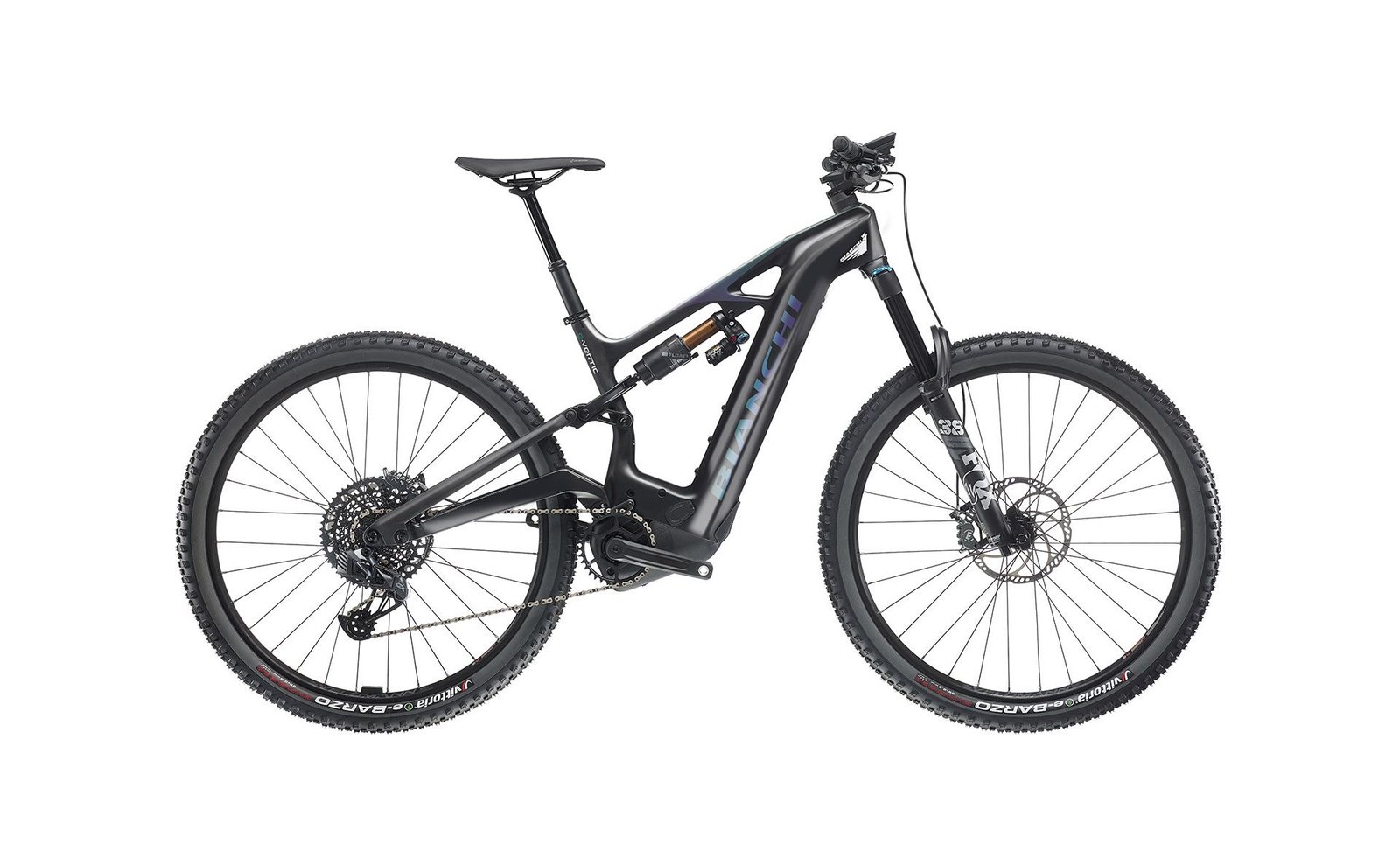

ROWER Bianchi E-VERTIC FX-TYPE PRO E3 – IRIDESCENT GREEN / ANTHRACITE

MOTOR UNIT

1. 1. 1. • 1. MOTOR

              Bosch Performance CX BES3 motor unit

           2. BATTERY

              Powertube 750wh integrated battery, w/Kiox display

         • FRAMESET

           1. FRAME

              e-VERTIC FX-Type Pro FULL SUSPENDED CARBON/ALU sizes: 43-48-53 – 160 mm front travel – 65 mm rear travel – HT 1,5″” tapered – Seatpost 31,6 mm – 12×148 mm dropouts – Set dropout (sx+dx) TA 148mm external derailleur + SRAM UDH

           2. FORK

              Fox, 38, A, FLOAT, 29in, P-S, 160, Grip, 3Pos, 15QRx110, 1.5 T, 58HT, 44mm Rake

           3. REARSHOCK

              Fox, FLOAT X2, 230, 65, 0.3 Spacer x2, CL001, ECR010, Rezi CM

           4. HEADSET

              Acros 1″”1/8 top / 1,5″” bottom – bearings Starnut, Alloy Topcap

         • DRIVETRAIN

           1. SHIFTERS

              Sram EC GX AXS EAGLE RH 2BUTTON MMX

           2. REAR DERAILLEUR

              Sram RD GX1 AXS LUNAR WITH BATTERY COVER

           3. CRANKSET

              Sram EAGLE 34T BOSCH GN4 DM ST EMTB B148 CK-320 FSA E-Bike Diecast Crankset – ISIS / 165mm / w/o crank bolt

           4. BOTTOM BRACKET

              included in the motor

           5. CHAIN

              Sram CN GX EAGLE 126LI PWR.LCK 12sp

           6. CASSETTE

              Sram CS XG 1275 EAGLE 10-52T

         • BRAKES

           1. BRAKES

              MT7 (banjo 4 piston caliper) Magura Shiftmix 4 for left-front, I Spec-EV compatible Magura Shiftmix 3 for right-rear Adaptor QM44 (180 – 203)

           2. ROTOR

              Magura Centerlock – 203 mm

         • WHEELS

           1. REARHUB

              Formula, DISC HUB, CENTER LOCK, J-BEND, THRU-AXLE, W/O QR, FOR SRAM XD DRIVER 11-SPEED, 4 SB, 32h

           2. FRONTHUB

              Formula, DISC HUB, CENTER LOCK, J-BEND, THRU-AXLE, W/O QR, 15×110, 32h, 2 SB

           3. TIRE

              Vittoria e-Barzo 29×2.6 XC-Trail

         • COCKPIT

           1. STEM

              Velomann, 50 mm, 35 mm, 1″1/8

           2. HANDLEBAR

              Velomann, width 780mm diam.35mm, rise 20mm, backsweep 9°, double butted AL7050

           3. GRIPS

              T-One Rock T-GP34 single lock grip , TPR

         • SADDLE

           1. SEATPOST

              Alpha1 Series – 31.6 mm – Remote RM07 I-Spec EV – 1800 mm cable length – Velomann logo 125 mm – for size M 150 mm – for size L/XL

           2. SADDLE

              Velomann, manganese rail, lenght 277mm x width 144mm
